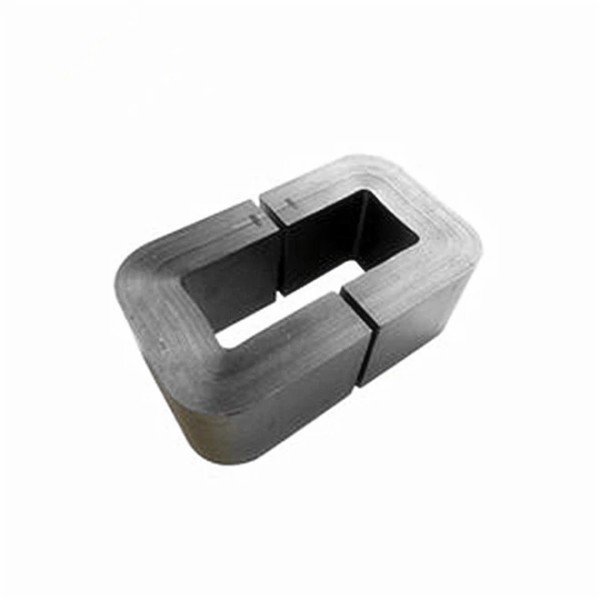

Amorphous C core is suitable for high power usage, C type core is easy to install, easy to wind copper wire.High saturation flux density, low core loss. Widely used for solar inverter filter, medium frequency transformer, output inductor, PFC coke. Amorphous magnetic cores have superior magnetic characteristics, such as lower core loss, when compared with conventional crystalline magnetic materials. Amorphous core metals are characterized by the lack of the usual crystalline structure with grains and grain boundaries. This is of advantage for soft magnetic behavior as disturbances like crystal anisotropies or domain wall pinning at grain boundaries are simply eliminated. Fe-based amorphous alloys have excellent magnetic properties, however do not reach the low losses or high permeabilities of nanocrystalline alloys due to the relatively high magnetostriction. The advantages are a higher saturation flux density and lower costs. The amorphous structure Fe based cores are ideal for applications where low losses are required.The properties of the material in his amorphous state tends to minimise the losses in the frecuancy range between 50 Hz and 10 kHz. Those cores saturate at 1,5T and are mainly used for reactors, filters and power applications. These cores can offer superior design alternative when used as the core material in the following components: AC Reactor DC Inductor PFC Boost Inductor: Under 6kW (microlite 100µ) and over 6kW Common Mode Chokes MagAmp Differential Mode Chokes / SMPS Output Inductor Spike Absorbing Cores CT's using Amorphous Magnetic Cores High Frequency Low Loss Transformers   Technical advantage: Where typical ferrite cores can only operate up to a flux saturation level (Bsat) of 0.49 Tesla, an amorphous metal core can operate at 1.56 Tesla. Combined with operating at permeability similar to high-end ferrites and the flexibility of manufacturing large cores sizes these cores can be an ideal solution for many of these components.Amorphous metal offers size, core and labor savings for various power conversion and EMC applications. Features: Material: Fe-based amorphous core Saturation flux density induction: 1.56T Curie temperature(℃): 410 Stacking factor: >0.8 Saturation magnetostriction(*10^-6): <30 Resistivity (μΩ.cm): 110 Ribbon thickness: 25μm Core shape: C core Craftsmanship Amorphous alloys are formed by adding a certain amount of glass forming agent to the molten metal, and rapidly quenching and casting using a narrow ceramic nozzle under high temperature melting conditions. Amorphous alloys have the similar characteristics of glass structure, which not only make them have excellent mechanical properties, physical properties and chemical properties, but more importantly, the new technology of producing amorphous alloys using this rapid quenching method is less than the cold-rolled silicon steel sheet process. 6 to 8 processes can save energy consumption by 60% to 80%, which is an energy-saving, time-saving and efficient metallurgical method. Moreover, the amorphous alloy has low coercivity and high magnetic permeability, and its core loss is significantly lower than that of oriented cold-rolled silicon steel sheet, and its no-load loss can be reduced by about 75%. Therefore, the use of amorphous alloys instead of silicon steel sheets to manufacture transformer cores is one of the main means to save energy and reduce consumption in today's power grid equipment.
